Midi/Maxi Master
Analog servo drive, Midi/Maxi Maestro compatible, for DC motors up to 5KW (16Nm), 30-160Vac power supply, currents from 8 to 25A

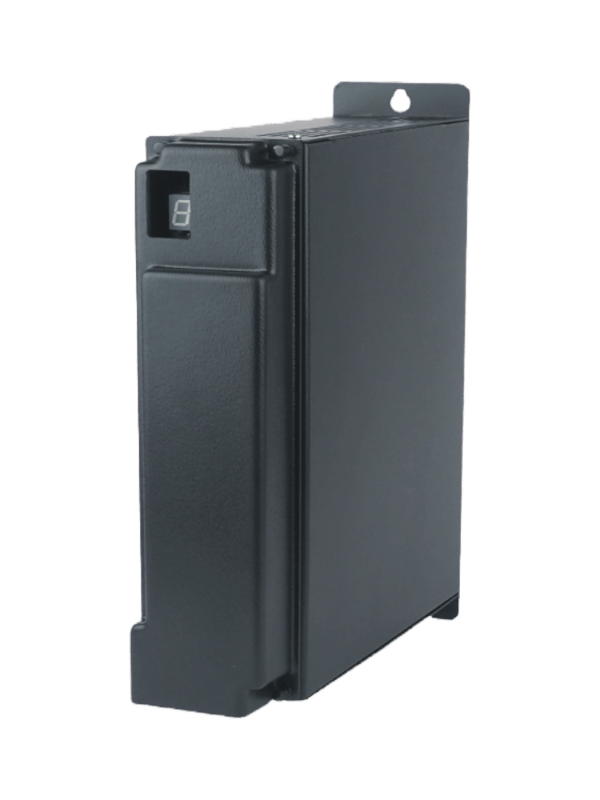

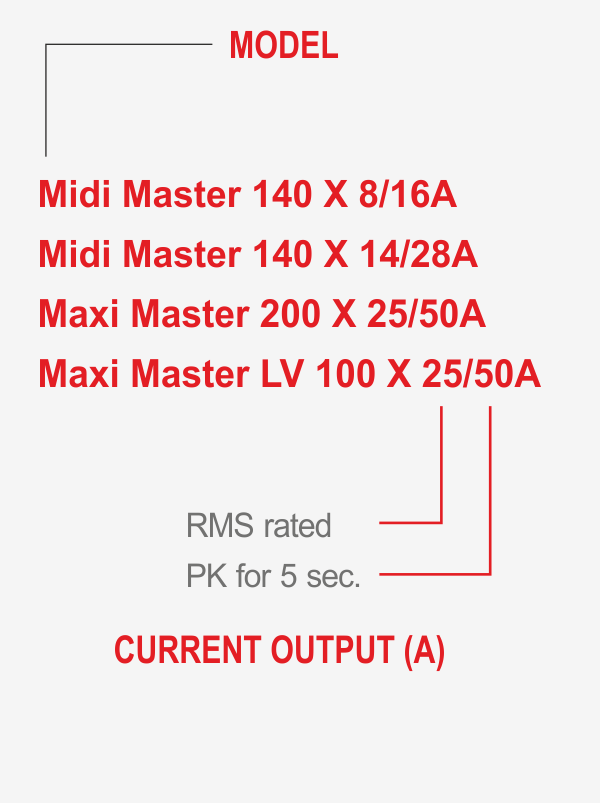

Midi Master is a four-quadrant drive suitable for driving DC servomotors with permanent magnets or with a wound stator, up to 5KW of power (16Nm). The converter can work with velocity feedback from a tachometer dynamo or in armature. The Midi Master converters are equipped with an internal 200W braking module and AC 3Ph/1Ph power supply. Type 140X8/16A, 140X14/28A, 200X25/50A.
Available functions:
- Feedback: tachogenerator, armature
- Adjustable acceleration / deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Enable and Stop digital inputs
- Limit switch positive / negative
DOWNLOAD Documentation:
- Datasheet MIDI-MAXI MASTER IT
- Datasheet MIDI-MAXI MASTER EN
- Manuale Midi & Maxi IT
- Service Manual Midi & Maxi EN
- Component certification UL/CSA (on request)
- Connections between Masterbox and Microphase motors (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
