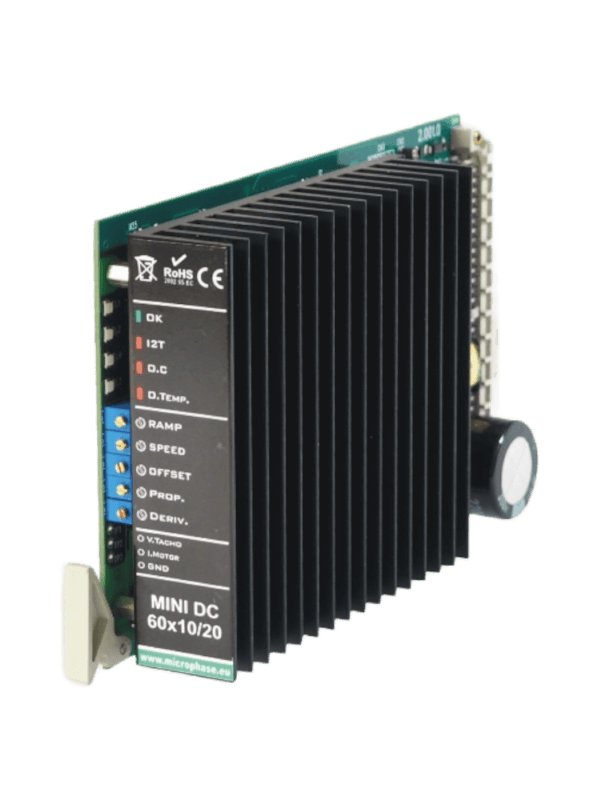

DCD 60
Servo drive for DC motors up to 800W (2,5Nm), power supply from 20-84Vdc, currents up to 14 / 28A
DCD60© is a four-quadrant drive suitable for driving DC servomotors with permanent magnets in Eurocard format. This converter is designed to be inserted on a support or on a rack. It is also available a cable guide with terminal board for applications with single DC power supply.
Available functions:
- Serial feedback: Encoder, tachometer dynamo, armature
- Adjustable acceleration / deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Command with PWM + DIR signals
- Command with forward/back PWM signals
DOWNLOAD Documentation:
- Connections between DCD60 and Microphase motors (on request)
- Component certification UL/CSA (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
DOWNLOAD Documentation:
- Datasheet IT
- Datasheet EN
- Datasheet Power supply parts
- Connections between DCD60 and Microphase motors (on request)
- Component certification UL/CSA (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
