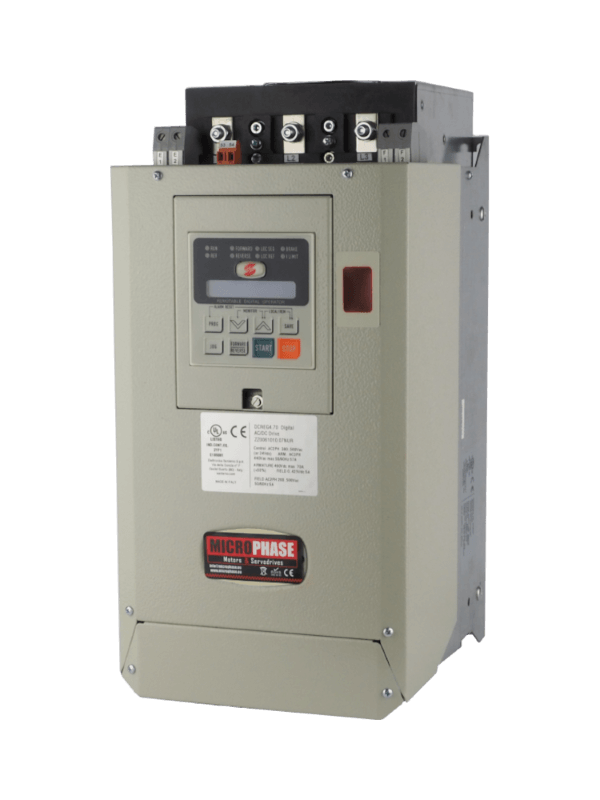

DCREG4Q

Digital servodrive stand alone, for DC Brush motors up to a 3200KW power supply 400Vac – 440Vac – 500Vac – 600Vac – 690Vac, current from 10 up to 4200A

The DCREG4Q devices are fully digital control AC/DC converters supplying DC motors armature circuit and field circuit to obtain speed control or torque control, featuring 4-quadrant operation.The DCREG4Q, thyristor converter, may be used to power supply high inductive loads, such as electromagnets. The application issues due to this type of load have been fixed by a control algorithm specifically developed for DCREG4Q converters

Available standard functions:

  • Integrated digital potentiometer
  • Local control via keypad
  • Insensitivity to phase sequence (easier connection to the plant)
  • Independent power supply between the control section and the power section
  • 8 programmable inputs
  • 4 programmable analog inputs 0-±10Vdc, 0(4)-20mA
  • Double encoder input
  • 5 programmable relay outputs
  • Auxiliary voltages 24Vdc, ±10Vdc, 5Vdc
  • 1 speed analog output ±10Vdc
  • 1 current analog output ±10Vdc
  • 2 programmable analog outputs 0-±10Vdc, 0(4)-20 mA
  • EMC compliance EN61800-3 ed. 2 second environment, category C3, EN55011 gr.2 class A
  • Certification: CE, EAC and UL
  • Compatible with the “REMOTE DRIVE” software for the remote control of the device
