Dc One XL

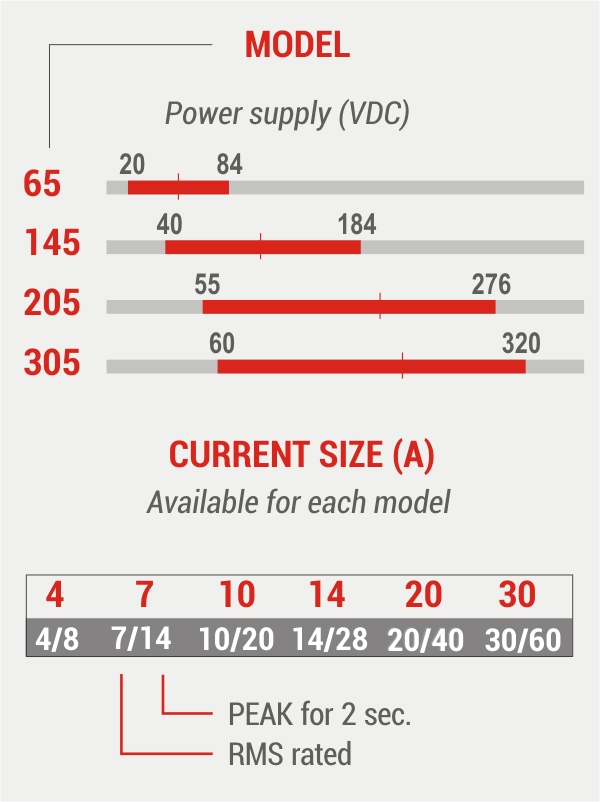

Servo drive for DC motors up to 6KW (20Nm), power supply from 20-320Vdc, currents up to 30 / 60A

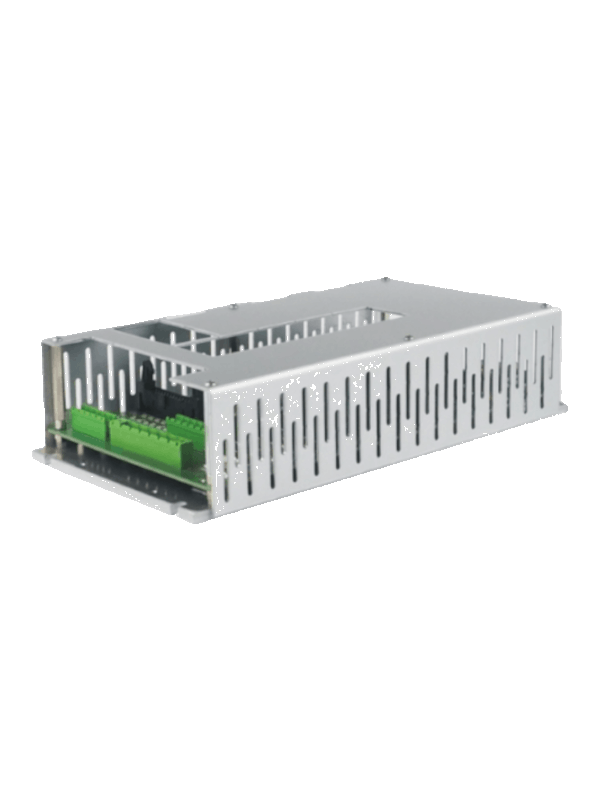

DC One XL PLUS© is a reliable and low-cost servo drive, suitable for driving DC motors with permanent magnets up to 6kW (20Nm). These drives are particularly suitable for all heavy-duty applications. Particular care in the design has been dedicated to the integration of internal components on large surfaces to the advantage of the reliability of the product. Power supply from 20 to 320 Vdc. Currents up to 30A nominal / 60A peak.

Available functions:

  • Serial feedback: Encoder, tachometer dynamo, armature
  • Adjustable acceleration / deceleration ramp
  • Analog speed reference +/- 10V
  • +/- 10V input for torque control and current command
  • Current and speed monitor signal
  • Command with PWM + DIR signals
  • Command with forward / back PWM signals
  • Positive & negative limit switch “motor stroke lock”

DC ONE XL can be powered in single-phase or three-phase alternating voltage, by mean of the AL-TM board. This card is able to supply 1 to 3 servo drives: see the relevant datasheet below.
