Dc One

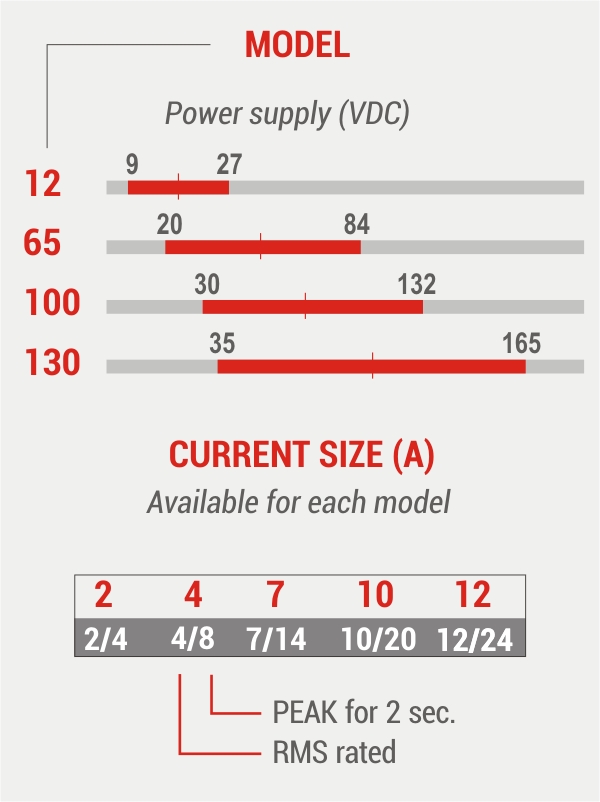

Servo drive for DC motors up to 1.2KW (3.8Nm), power supply 12-130Vdc, currents up to 12 / 24A
The DC One© servo drive is a very compact, reliable and low-cost control, suitable for driving DC motors up to 1.2KW (3.8Nm). Power supply from 12 to 130 Vdc currents up to 12A nominal / 24A peak.
This converter is the ideal solution for all movements and positioning systems when high torque at low revolutions and quick responses are required.
Available functions:
- Standard feedback: Encoder, tachometer dynamo, armature.
- Adjustable acceleration / deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Command with PWM + DIR signals
- Command with forward/back PWM signals
- Positive & negative limit switch “engine overrun block”
DC ONE can be powered in single-phase or three-phase alternating voltage, by mean of the AL-TM board. This card is able to supply 1 to 3 servo drives: see the relevant datasheet below.
DOWNLOAD Documentation:
- Datasheet IT
- Manuale di servizio
- Datasheet EN
- Service manual
- Comandi e pilotaggi azionamenti Microphase
- Datasheet AL-TM power supply
- Datasheet Power supply parts
- Connections between DC One and Microphase motors (on request)
- Component certification UL/CSA (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
