Masterbox

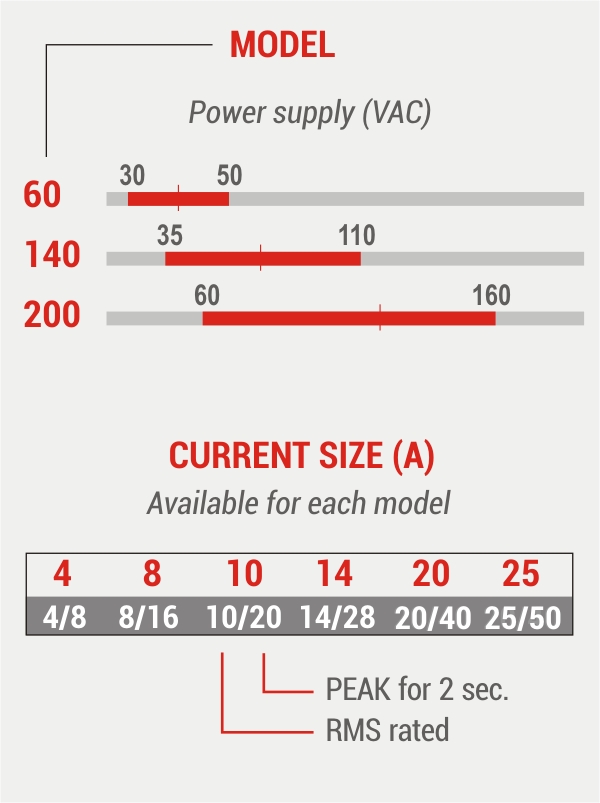

Analog servo drive, stand alone, for DC motors up to 5KW (16Nm), 30-160Vac power supply, currents from 4 to 25A

MASTERBOX © is a four-quadrant drive suitable for driving DC servomotors with permanent magnets or with a wound stator, up to 5KW of power (16Nm). The converter can work with velocity feedback from a tachometer dynamo, encoder or in armature. The Masterbox converters are equipped with an internal 200W braking module and AC 3Ph/1Ph power supply.

Available functions:

  • feedback: tachogenerator, armature, encoder
  • Adjustable acceleration / deceleration ramp
  • Analog speed reference +/- 10V
  • +/- 10V input for torque control and current command
  • Current and speed monitor signal
  • Enable and Stop digital inputs
  • Limit switch positive / negative
Category:

DOWNLOAD Documentation:

All the used components are UL/CSA marked: the relative descriptive file is available.
