Traction DC

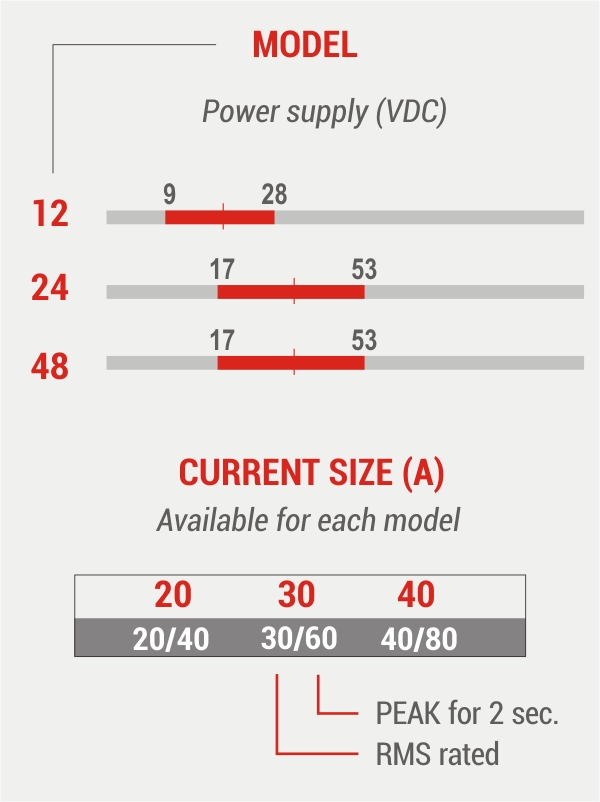

Servo drive for brushless motors up to 1.8KW (5.5Nm), power supply from 20 – 55V, currents up to 40 / 80A
These servo drives are particularly suitable for battery applications with 12/24 / 48VDC voltage, in combination with direct current traction motors. Reliable, robust and low-cost products.
Available functions:
- Serial feedback: tachometer dynamo, encoder, armature
- Adjustable acceleration / deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Command with PWM + DIR signals
- Command with forward/back PWM signals
- Positive & negative limit switch “motor stroke lock”
DOWNLOAD Documentation:
- Component certification UL/CSA (on request )
- Connections between Traction Dc and Microphase motors (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
