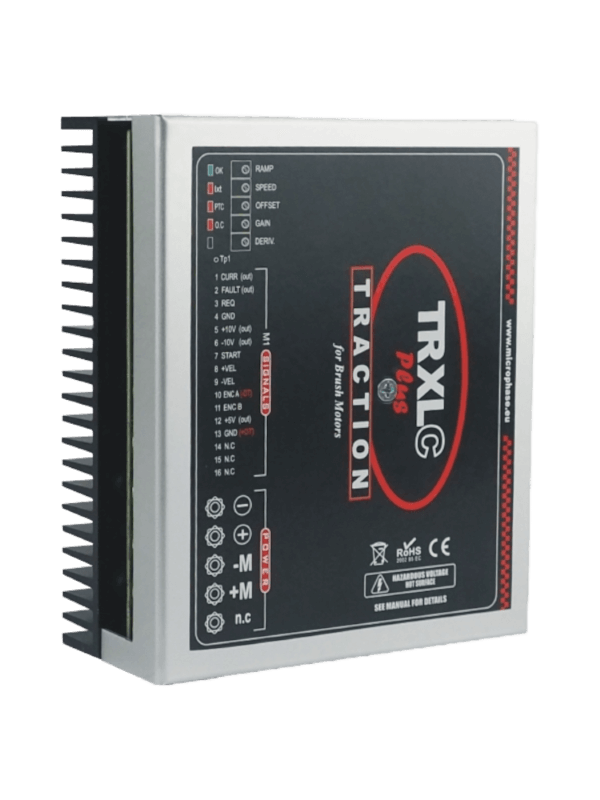

Traction Plus DC

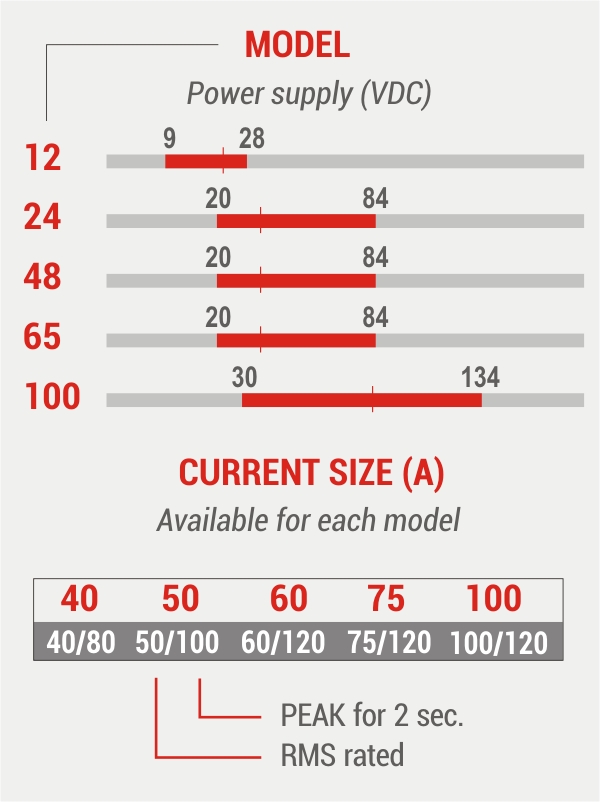

Servo drive for DC motors up to 6KW (20Nm), power supply from 9 – 134V, currents up to 100 / 120A
TRACTION PLUS DC© is suitable for battery applications with a nominal voltage of 12 to 96 VDC, combined with DC drive motors. Reliable, robust and low-cost products.
Available functions:
- Serial feedback: tachometer dynamo, encoder, armature
- Adjustable acceleration / deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Command with PWM + DIR signals
- Command with back/froward PWM signals
- Positive & negative limit switch “motor stroke lock”
DOWNLOAD Documentation:
- Component certification UL/CSA (on request)
- Connections between Traction Plus DC and Microphase motors (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
