Traction BLDC

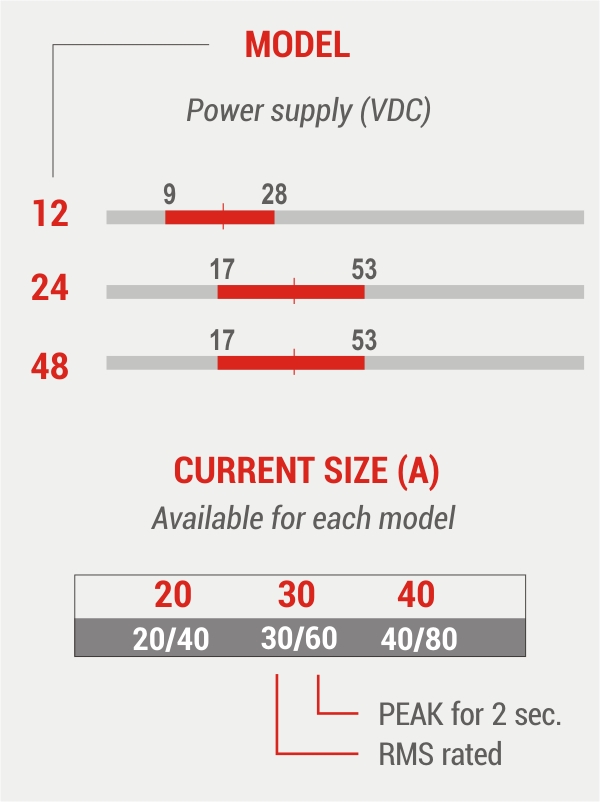

Servo drive for brushless motors up to 1.8KW (5.5Nm), power supply from 20 – 55V, currents up to 40 / 80A
These servo drives are reliable, robust and low-cost products, particularly suitable for battery applications with 12/24 / 48VDC voltage combined with Brushless traction motors.
Available functions:
- Standard feedback: Encoder, armature, hall signals
- Adjustable acceleration/deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Command with PWM + DIR signals
- Command with forward/back PWM signals
DOWNLOAD Documentation:
- Component certification UL/CSA (on request)
- Connections between Traction BLDC and Microphase motors (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
