Traction Plus BLDC

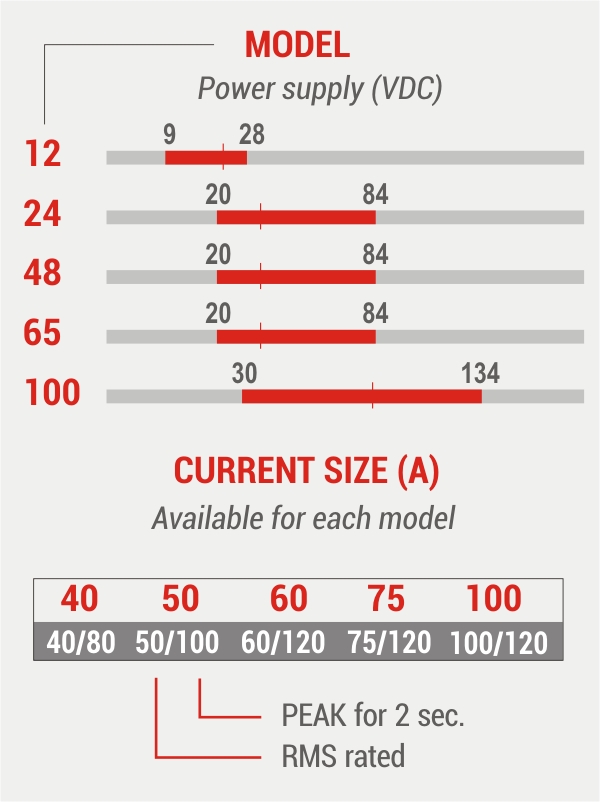

Servo drive for brushless motors up to 6KW (20Nm), power supply from 9 – 134V, currents up to 100 / 120A
TRACTION PLUS BLDC© is a reliable, robust and low-cost product suitable for battery applications with voltage in the range of 12 to 96VDC, combined with Brushless traction motors.
Available functions:
- Standard feedback: Encoder, armature, hall signals
- Adjustable acceleration/deceleration ramp
- Analog speed reference +/- 10V
- +/- 10V input for torque control and current command
- Current and speed monitor signal
- Command with PWM + DIR signals
- Command with forward/back PWM signals
DOWNLOAD Documentation:
- Component certification UL/CSA (on request)
- Connections between Traction Plus BLDC and Microphase motors (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
