Traction Power

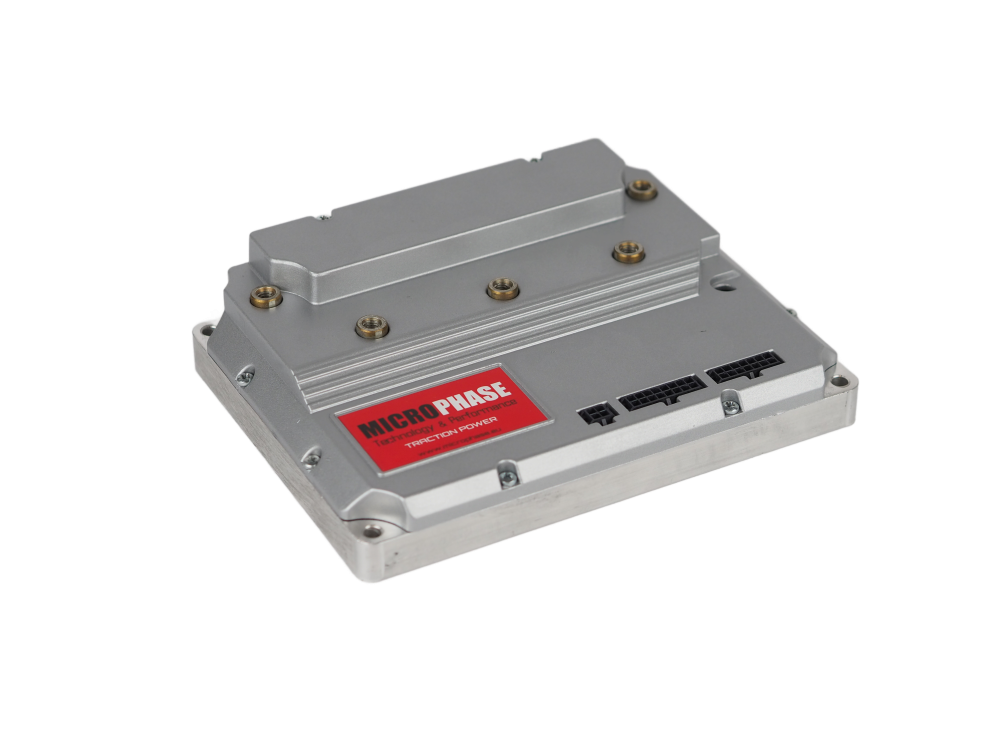

Traction Power© series, the state of the art in electronics for brushless motors up to 10KW.

These servo drives are particularly suitable for battery applications with 24/48/72VDC voltage. We implemented a new advanced algorithm for the optimal operation of the brushless motor even without feedback (sensorless).

Typical applications: automotive and all automatic machines.

High product reliability. Currents up to 100A nominal, 250A peak.



Operating modes:

  • 0 / 10V ref. analogue speed
  • 0 / 10V ref. analogue torque
  • Analog positioning
  • Digital positioning profiles
  • Impulse and direction
  • Modbus-RTU
  • CANbus DS402

Available feedbacks:

  • Sensorless (only with U, V, W power)
  • Hall + Encoder sensors
  • Resolver
Category:

DOWNLOAD Documentation:

All the used components are UL/CSA marked: the relative descriptive file is available.
