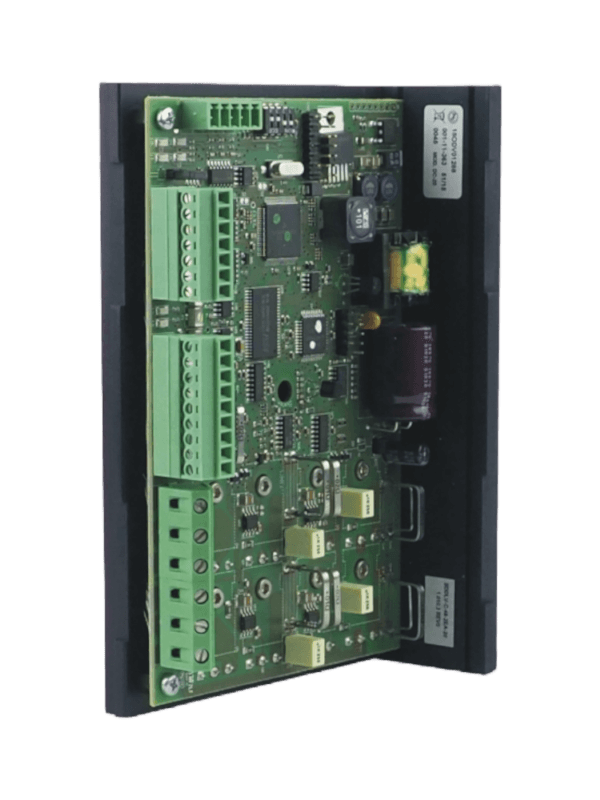

Traction Link BLDC
Traction Link BLDC© is a full digital drive suitable for driving servomotors BRUSHLESS TRACTION with permanent magnets.
It works with ModBus RTU and CanOpen network commands. It’s compact size incorporates a high construction technology that makes it particularly suitable for piloting servomotors in traction applications with battery power at 12-24-48V, where dynamic performance and remarkable regularity of operation are required.
Available functions:
- Single DC power supply
- Operating modes: CanOpen Ds402, Rs232 ModBus RTU
- 6 diagnostic Leds (States and Alarms), 2 Leds, CanOpen activities
- Standard feedbacks: Encoders + Hall sensors
- Protected for short circuit, min / max voltage, overtemperature, Ixt motor thermal image.
- Current monitor signal
DOWNLOAD Documentation:
- Component certification UL/CSA (on request)
- Connections between Traction Link BLDC and Microphase motors (on request)
All the used components are UL/CSA marked: the relative descriptive file is available.
